Services and Equipment

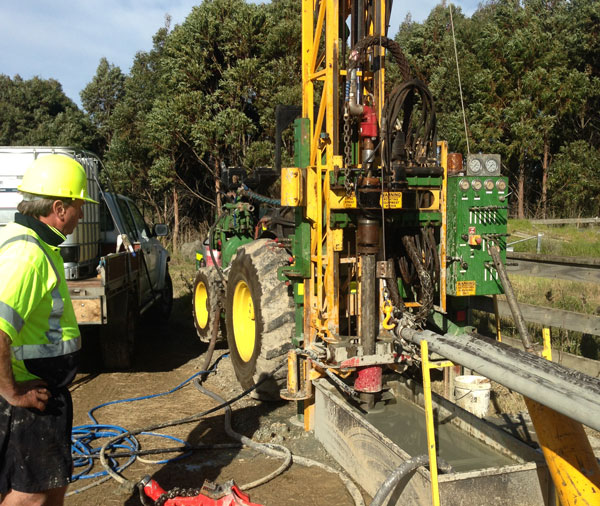

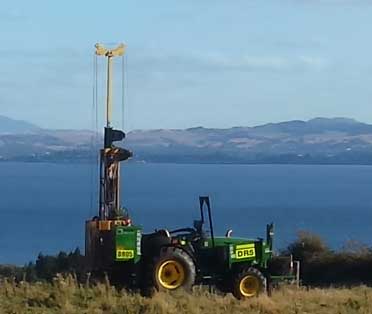

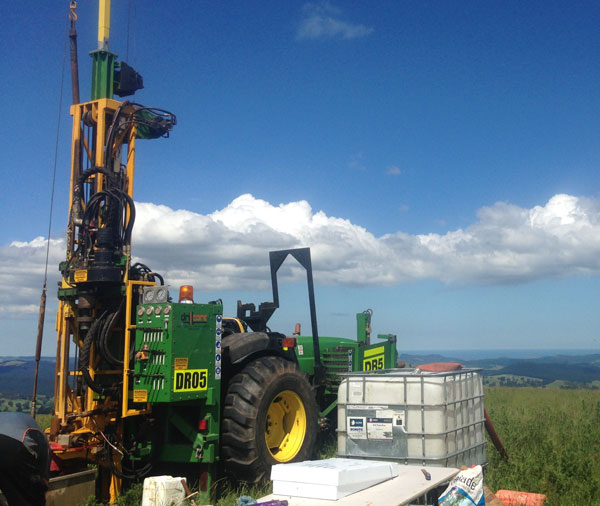

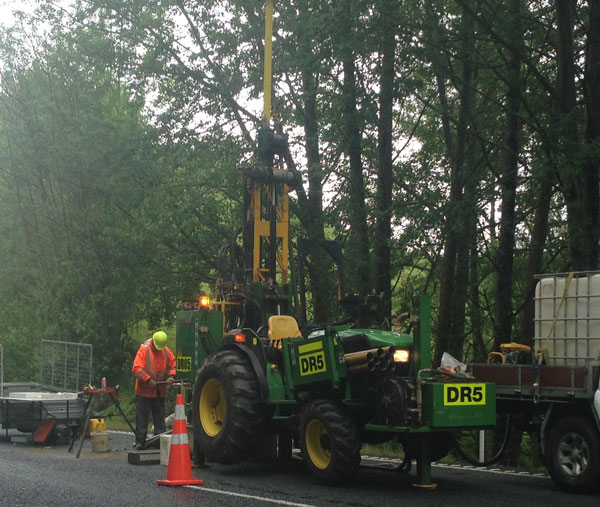

DR 5 John Deere Explora 85 Tractor-Mounted Drill Rig
A versatile compact Geotechnical Drill Rig
- Pre-start checks done daily, full mechanical servicing history
- HQ-3 Diamond Coring to 200m
- PQ-3 Diamond Coring to 90m
- Hollow Flyte Auger to 35m
- Rotary Mud/Air to 150m
- SPT Mounted to Rig Mast
| Travelling Length | 6000mm |
| Footprint Length | 3150mm |
| Width | 1500mm |
| Weight | 5500kg |
| Height Travelling | 2400mm |
| Height Drilling | 6000mm |
| Ground Pressure | 2.2kg/cm² |
- HQ PQ Triple Tube Coring
- Wash Drilling
- Standard Penetration Test (SPT)
- Shear Vane Test
- Thin Wall Push Tubes
- Packer Tests
- Rising-Falling Head Tests
- Piezometers
- Vibrating Wire Piezometers
- Inclinometers

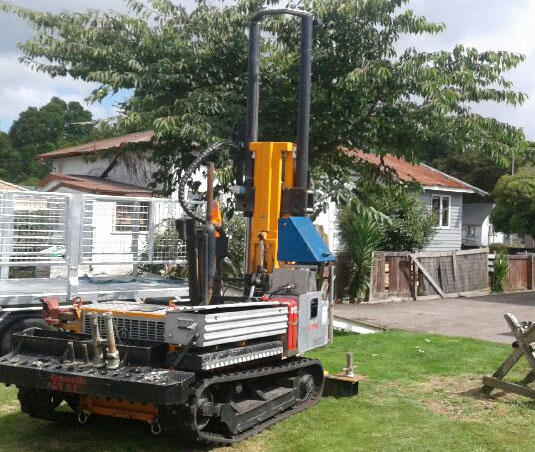

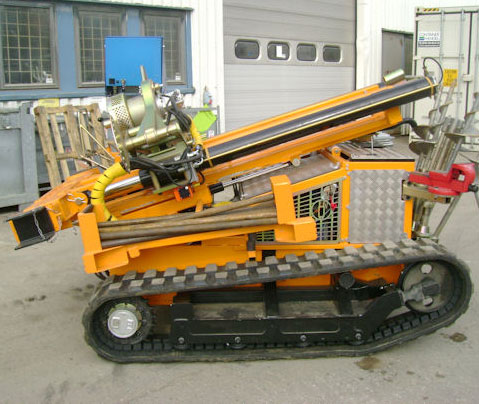

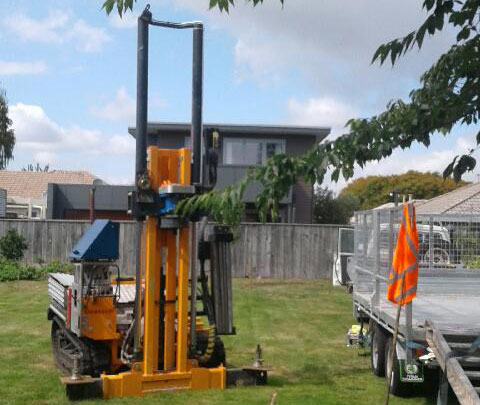

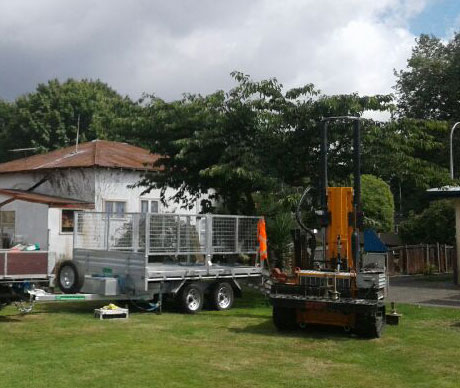

GEORIG 220
USER FRIENDLY • ERGONOMIC • ACCESSIBILITY
GEORIG 220 is designed for CPT/CPTU and static penetration and has a pushing capacity of 200 kN.
The small compact 220 is designed for tight/difficult access sites. Due to its small dimensions, light weight and crawlers the Georig 220’s capacity in rough terrain is very good.
Even though it weighs about 2 tons, it has a pushing capacity of 20 tons. It can also perform other methods like dynamic sounding and rotary/augering.
The Georig 220 has lifting points to be either helicoptered or craned into site.
Technical Specifications:
| Stroke: | 1500mm |
| Width: | 1660mm |
| Length: | 2650mm |
| Height: | 1790mm |
| Height (mast lowered): | 1420 mm |
| Push force (max): | 200Kn |
| Pull force (max) | 200Kn |
| Weight: | 2000kg to 2300kg (depending on equipment) |
Support Vehicles

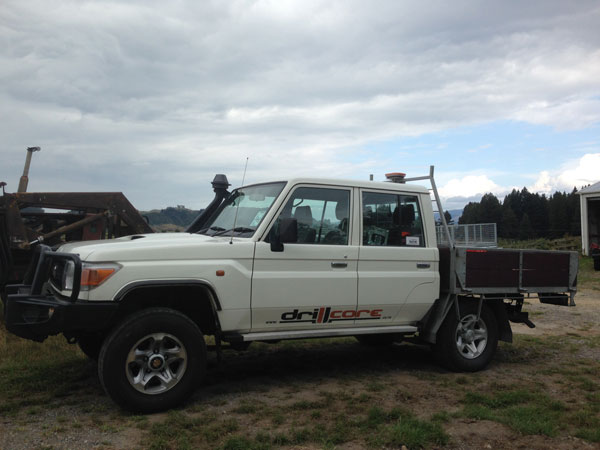

Our Land cruiser 4x4 vehicles are equipped with a flashing beacon, first aid kit, fire extinguisher, spill kit, health and safety manual and maintenance record booklet.

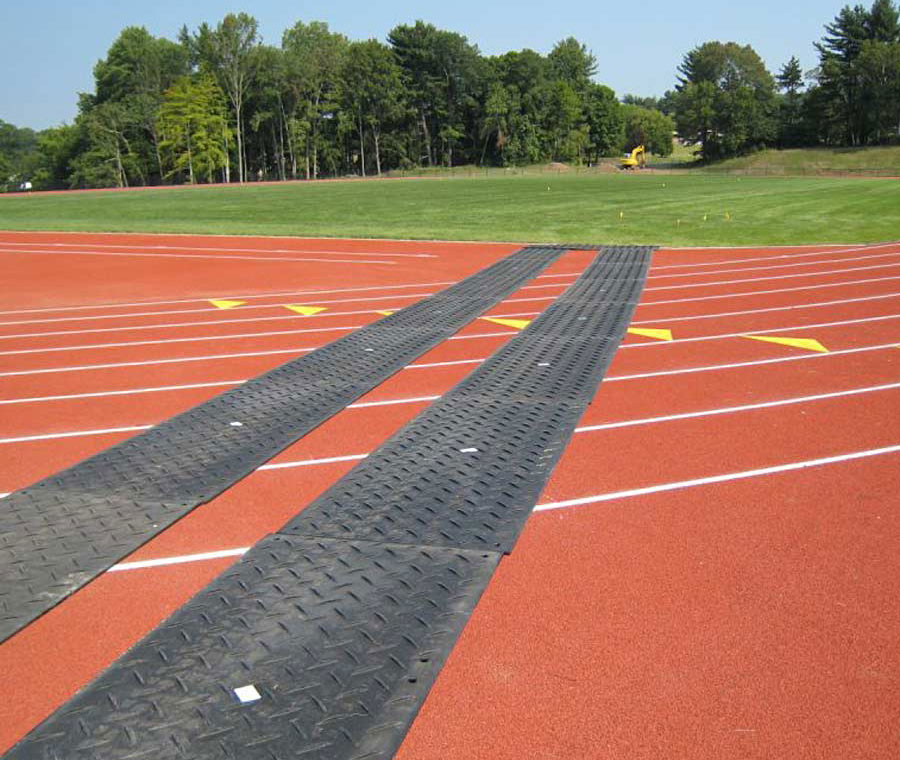

Plastic Track Mats

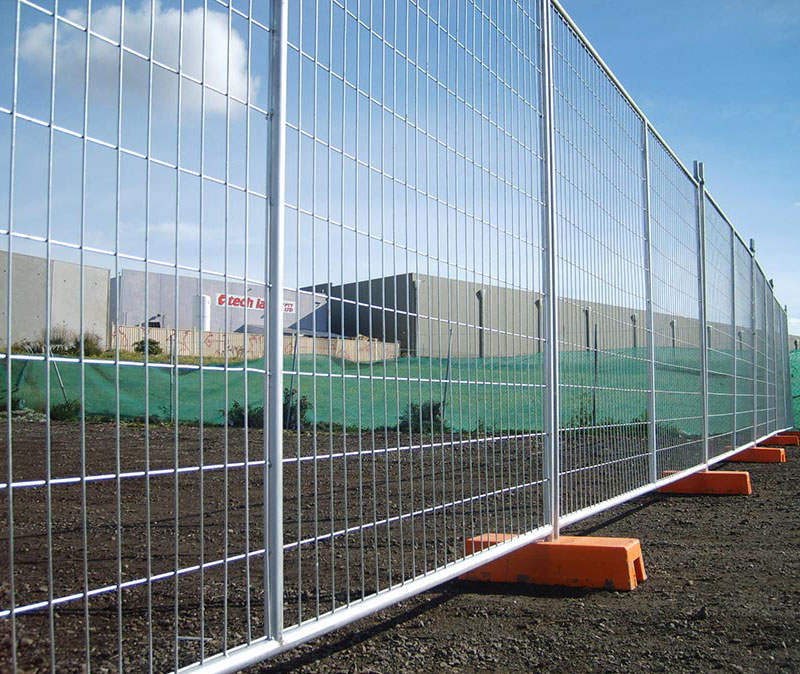

Temporary fences

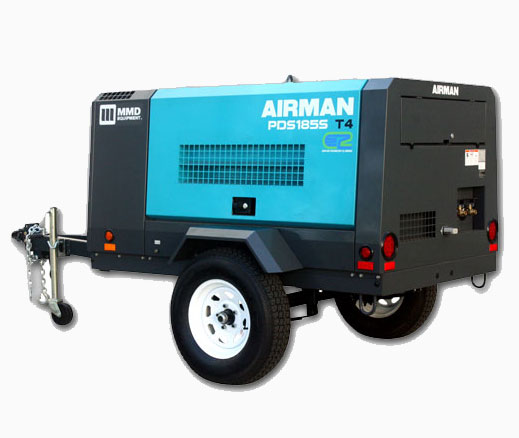

Compressor
Light tower
